Plastic H and 2 Part H Sections

TP Extrusions stock and manufacture plastic H Sections in different shapes and sizes for use with common building and exhibition materials such as Boards, Panels, steel, plywood and foamex. Please contact us to discuss H Section requirements if you cannot find what you want.

However if you cannot find what you are looking for we offer a Custom Plastic Extrusion Option and would welcome your enquiry.

The H Sections, Butt Joints and Division Bars on this page complement the other Board and Panel profiles that we supply. Pages detailing our T Sections, Corner Joints, Capping and Clip-on Edging can be reached from our Board and Panel Landing Page.

Stock Plastic H Sections

A range of Plastic H Section sizes and styles is stocked and available on a next working day basis. These are in popular colours and packs of different lengths. Production runs are possible from stock tools.

H Section

Stock Plastic Equal H Extruded Sections from TP Extrusions

Unequal H

Stock Plastic Unequal H Extruded Sections from TP Extrusions
Dimensions in mm
Ref Dwg A B C D Materials/Comments
TP08 0063 Unequal H 3.9 3.9 12.5/30 1.3 STOCK rigid pvc, colour choice
TP08 0118 H Section 6.4 5.6 23 1.2 STOCK rigid pvc, colour choice
TP08 0132 Unequal H 12 11.5 18/25 1.2 STOCK rigid pvc, colour choice
TP08 0131 H Section 12 11.5 25 1.2 STOCK rigid pvc, colour choice
TP08 0094 Unequal H 16 14.5 22.6/31.5 1.4 STOCK rigid pvc, colour choice
TP08 0091 H Section 16 14.5 31.5 1.4 STOCK rigid pvc, colour choice
TP08 0101 H Section 19 17.5 36.5 1.4 STOCK rigid pvc, colour choice
For our standard stock click here >>
and select from Small, Medium or Large Board and Panel pages.

Stock Plastic 2 Part H Sections

Plastic extrusions for board mounting that must be done face-on, or where board or panel sizes are variable, we also stock 2 Part H Section. The base section can be mounted, boards positioned and the top section then pressed into place – the barbs on the top section being held by the ridges within the base.

Please note it is possible for us to supply either section by itself, if required.

Stock Plastic 2 Part H Sections from TP Extrusions
Dimensions in mm
Ref Board Size A B Materials / Comments
Small Top TP08 0141 2-5mm 23 – STOCK rigid PVC, colour choice
Medium Top TP08 0144 6-7mm 30 – STOCK rigid PVC
Large Top TP08 0142 8-12mm 35 – STOCK rigid PVC, colour choice
X Large Top TP08 0143 23-26mm 46 – STOCK rigid PVC
Small Base TP08 0140 2-5mm – 35 STOCK rigid PVC
Medium Base TP08 0145 6-7mm – 30 STOCK rigid PVC
Large Base TP08 0146 12-16mm – 30 STOCK rigid PVC
X Large Base TP08 0147 17-20mm – 27.5 STOCK rigid PVC
XXX Large Base TP08 0149 23-26mm – 31.5 STOCK rigid PVC
For our standard stock click here >>

Custom H Sections

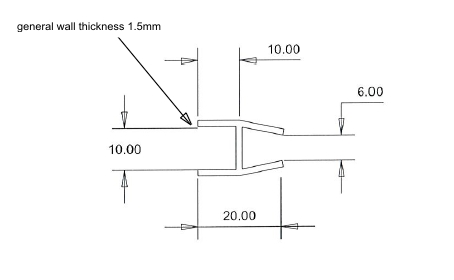

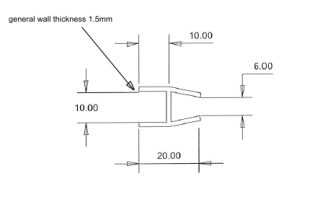

TP Extrusions also has a wide range of Plastic Extrusion Tooling for made to order H Section (both equal and unequal), Butt Joint, Jointing Strip and Division Bar, all listed below. This type of tooling is generally cost-effective to make, so if you cannot find the exact profile you require, please contact us for H Section tooling enquiries

However if you cannot find what you are looking for we offer a Custom Plastic Extrusion Option and would welcome your enquiry.

Please note that where a tool is described as “Flexible”, the profile can only be run in this material. All other tooling is suitable for both rigid and flexible production.

Regarding the tapering of legs on each Plastic H section, commonly done so that the inserted material is gripped, the angle of taper can generally be varied when produced, so that a tool can be used for parallel or tapering legs.

H Section

Stock Plastic Equal H Extruded Sections from TP Extrusions

Unequal H

Stock Plastic Unequal H Extruded Sections from TP Extrusions
Dimensions in mm ** drawing below
Ref Dwg A B C D Materials/Comments
TP02 B027 H Section 0.8 0.8 6 0.7
TP05 1855 Unequal H 1 1 6/20 1  **
TP08 W033 Unequal H 1.2 1.2 19/29 –
TP02 B026 H Section 1.5 1.5 8 1
TP08 0178 H Section 1.6 1.1 23.3 1.5
TP05 1705 Unequal H 1.6 1.6 15/14 1 **
TP05 1276 H Section 2 2 12 – Thick domed top
TP05 1634 Unequal H 2 2 16/40 1.5 Clip-in legs on rear face**
TP07 1308 Unequal H 2.0 1.5 50/26 1.5 Hygienic Cladding
TP08 W264 H Section 2.3 2.3 15.8 12.60
TP05 1789 Unequal H 2.7 0.8 50/75 1/3.4 Flexible Carpet Trim**
TP02 B028 Unequal H 3 3 15/30 1/1.5 Short side ridged**
TP08 W040 H Section 3.1 3.1 14 1.2
TP08 W192 Unequal H 3.2 3.2 13/24 1.2
TP08 W262 Unequal H 3.3 3.3 16.7 –
TP02 B025 H Section 3.5 3.5 14 1
TP08 W035 H Section 3.6 3.6 12.5 1
TP05 1374 Unequal H 3.6 3.6 51/68 1.5/5 Flexible Carpet Trim
TP08 W214 Unequal H 3.8 3.8 25/51 1.3
TP05 1272 Unequal H 3.8 3.8 51/78 1.8 Carpet Trim
TP07 1331 Unequal H 3.8 3.4 55/25 2 Hygienic Cladding
TP08 W226 H Section 4 2.8 21 1
TP08 W023 H Section 4 4 19 1
TP08 W238 H Section 4.2 4.2 22 1
TP05 1119 H Section 4.5 3.5 18 1 Front face angled**
TP08 W160 Unequal H 4.5 4.5 8.8/13 1.7 Stem on short face mimics T Section **
TP08 W042 H Section 4.6 4.6 15 –
TP05 1374A Unequal H 5 2.5 50/62 1/3.4 Flexible Carpet Trim
TP08 2149 Unequal H 5 5 10/30 1.2
TP02 B024 Unequal H 5 5 20/35 1.5 **
TP05 1912 H Section 5.8 5.8 29 1.5 Runner in both channels**
TP02 B023 Unequal H 5.8 5.8 21/37 1.8
TP02 B022 Unequal H 6.8 6.8 22/40 1
TP05 1332 Unequal H 7 7 22/48 2 **
TP02 B021 H Section 8 8 20 2
TP08 W034 H Section 8.1 8.1 21 1
TP08 W188 H Section 8.4 7 21 1
TP02 B020 Unequal H 9 6 30/54 2 Short side legs straight, long side angled**
TP08 W263 H Section 9 7.5 22 1.2
TP08 2016 H Section 9 8 22 1
TP08 W305 H Section 10.5 9.5 22.5 1.3
TP05 1053 Unequal H 14.5 14 35.5/41 – Gentle curve front face
TP05 1803 H Section 19.5 18.5 21 1.5 **
TP03 H001 H Section 19.8 19.8 36 UPVC
TP08 W313 H Section 20 20 39 1.4
TP08 W210 H Section 21.4 1.5 32 1 Flexible
TP08 W008 H Section 26 26 23 1.7
TP07 2145 H Section 26 26 68 4 PP
TP07 1374 H Section 35 33 68 2
TP05 2113 H Section 67 64 42 2
TP05 1634 Plastic H Extruded Section from TP Extrusions
TP05 1634 Plastic H Extruded Section from TP Extrusions

TP05 1634

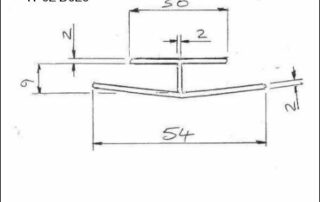

TP02 B020 Plastic H Extruded Section from TP Extrusions
TP02 B020 Plastic H Extruded Section from TP Extrusions

TP02 B020

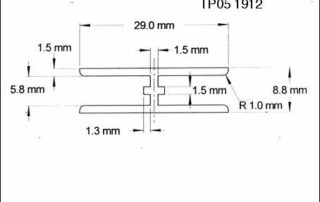

TP05 1912 Plastic H Extruded Section from TP Extrusions
TP05 1912 Plastic H Extruded Section from TP Extrusions

TP05 1912

TP05 1855 Plastic H Extruded Section from TP Extrusions
TP05 1855 Plastic H Extruded Section from TP Extrusions

TP05 1855

TP05 1803 Plastic H Extruded Section from TP Extrusions
TP05 1803 Plastic H Extruded Section from TP Extrusions

TP05 1803

TP05 1705 Plastic H Extruded Section from TP Extrusions
TP05 1705 Plastic H Extruded Section from TP Extrusions

TP05 1705

TP05 1332 Plastic H Extruded Section from TP Extrusions
TP05 1332 Plastic H Extruded Section from TP Extrusions

TP05 1332

TP02 B024 Plastic H Extruded Section from TP Extrusions
TP02 B024 Plastic H Extruded Section from TP Extrusions

TP02 B024

TP02 B028 Plastic H Extruded Section from TP Extrusions
TP02 B028 Plastic H Extruded Section from TP Extrusions

TP02 B028

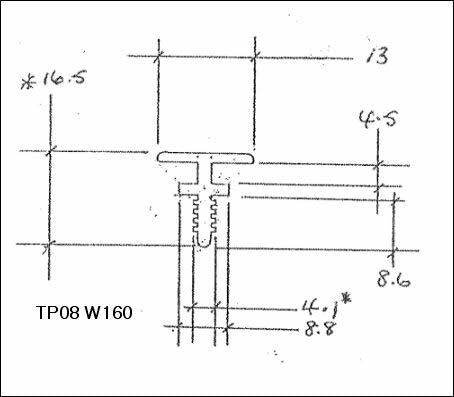

TP08 W160 Plastic H Extruded Section from TP Extrusions
TP08 W160 Plastic H Extruded Section from TP Extrusions

TP08 W160

TP05 1119 Plastic H Extruded Section from TP Extrusions
TP05 1119 Plastic H Extruded Section from TP Extrusions

TP05 1119

TP05 1789 Plastic H Extruded Section from TP Extrusions
TP05 1789 Plastic H Extruded Section from TP Extrusions

TP05 1789

TP07 1331 Plastic H Extruded Section from TP Extrusions
TP07 1331 Plastic H Extruded Section from TP Extrusions
TP07 1308 Plastic H Extruded Section from TP Extrusions
TP07 1308 Plastic H Extruded Section from TP Extrusions

TP07 1308
