2 Part EPOS Label Holders / Ticket Strips
This page details 2 part epos ticket strips (plastic extrusions) that allow the enclosed label or ticket to be viewed from both sides. The base plate can have clips or legs for specific surface or shelf edge attachment, or have self adhesive tape applied. Although the 2 parts are extruded separately, they can be supplied assembled for easy installation.
Epos strips are generally extruded in clear rigid PVC, which gives good clarity, is cost-effective and is suitable for regular re-use. For greater clarity, where cosmetic appearance is more important, PETG is recommended, although this is generally more expensive to extrude than PVC. Please refer to our Materials Processed page for more details or contact us with Ticket Strip enquiries.
For flat/curved, open or epos label holders please click through.
Please note that none of the plastic extrusions listed below are held in stock – they are made to order, and subject to minimum order quantity. If you do not see the exact sizes or styles you require we can design and manufacture tooling for you and would be pleased to quote for this. Profiles have been summarised as far as is possible – samples are often available and drawings can be viewed (also below) for more information.
However if you cannot find what you are looking for we offer a Custom Plastic Extrusion Option and would welcome your enquiry.
Ref | Label (mm) | Wall (mm) | Description (** drawing below table) |
TP05 1816 | 15 | 1 | Mounting plate for TP05 1817, has legs and epos holder also ** |

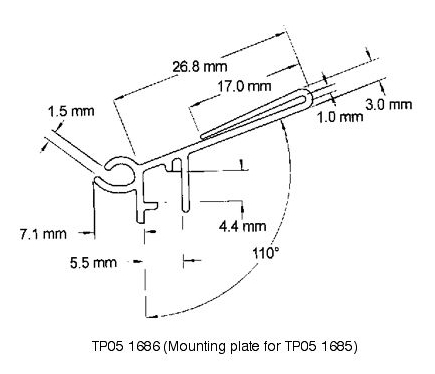

TP05 1686 | 16 | 1 | Mounting plate for TP05 1685, has legs and epos holder also ** |
TP05 1471 | 16 | 1 | Mounting leg, needs TP05 1468 mounting plate ** |
TP05 1468 | — | 1 | Mounting plate for TP05 1471 ** |
TP05 1768 | 19 | 1 | Mounting plate for TP05 1769, has legs and epos holder also ** |
TP05 1817 | 20 | 1 | Mounting leg, needs TP05 1816 mounting plate ** |

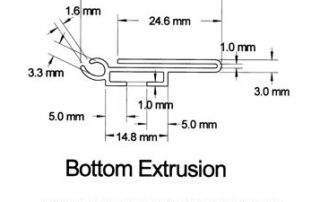

TP05 1812 | 23 | 1 | Mounting plate for TP05 1811, has legs and epos holder also ** |

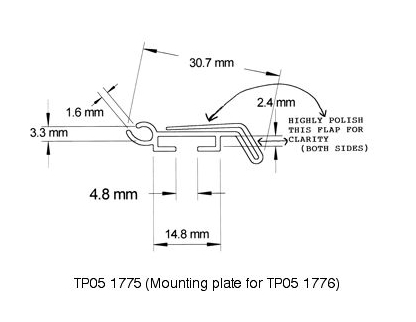

TP05 1775 | 25 | 1 | Mounting plate for TP05 1776, has legs and 60 degree bent epos holder also ** |

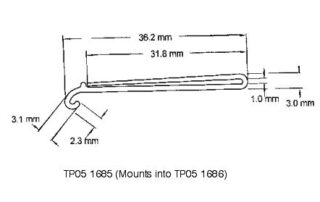

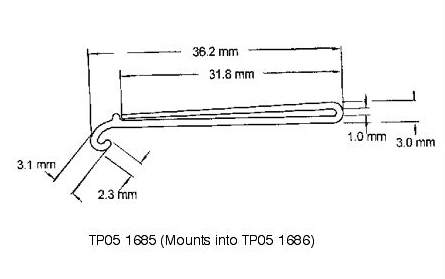

TP05 1685 | 30 | 1 | Mounting leg, needs TP05 1686 mounting plate ** |

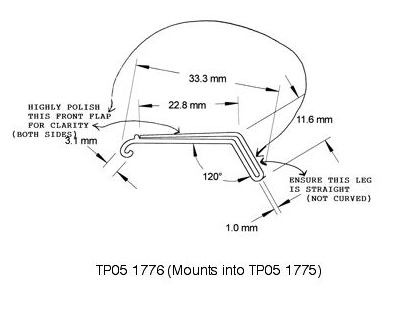

TP05 1776 | 34 | 1 | 60 degree bent epos with mounting leg, needs TP05 1775 mounting plate ** |

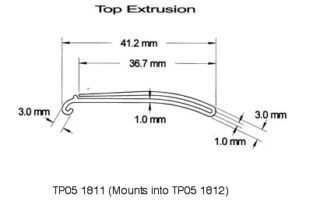

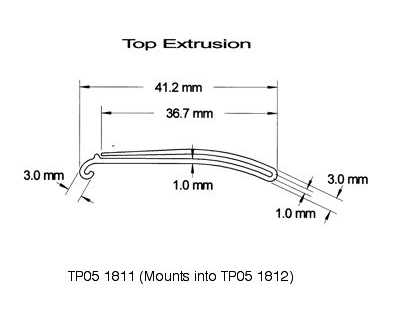

TP05 1811 | 35 | 1 | Mounting leg, needs TP05 1812 mounting plate ** |
TP05 1950 | 35 | 1 | Mounting leg |

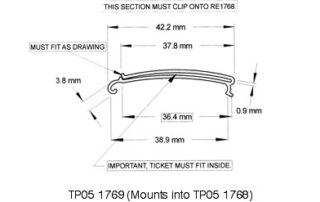

TP05 1769 | 36 | 1 | Mounting leg, needs TP05 1768 mounting plate ** |
TP05 1949 | 43 | 1 | Mounting leg |
Click on a thumbnail image for a larger version of these plastic extrusions :
