Curved Open Label Holders / Ticket Strips
This page details our plastic extrusions that are open ticket strips, with convex faces for enhanced viewing perspective, for different ticket widths and a variety of fixing legs and clips. These allow easy attachment to shelf edges and basket rims, although self adhesive/ magnetic strips can be attached for adhesion to many surfaces. Retaining lips keep the price ticket in place.
Open label holders or data strips are usually extruded in rigid PVC, and can be made in a wide range of colours to suit your application. Please visit our Materials Processed page for more details or contact us with Ticket Strip enquiries.
For flat open label holders please click through, or return to our Label Holders landing page for details of epos and 2 part ticket strips.
Please note that none of the data strip profiles listed below are held as stock – they are extruded to order, and produced with minimum order quantities. If the exact profile you require is not detailed we can design and manufacture tooling for you. Features of each ticket strip have been stated as far as is possible – samples are often available and drawings can also be viewed.
However if you cannot find what you are looking for we offer a Custom Plastic Extrusion Option and would welcome your enquiry.
| Ref | Label (mm) | Wall (mm) | Lips (mm) | Description (** drawing below table) |
| TP05 1850 | 22 | 1 | 1.75 | Curved with 2 legs ** |
| TP05 1969 | 22 | 1 | 2.25 | Curved with 2 legs |
| TP05 1841 | 22 | 1 | 1.75 | Curved with 2 legs |
| TP05 1751 | 27 | 1 | 3.5 | Curved with C clip ** |
| TP05 1839 | 30 | 1 | 3 | Curved with 3 legs |
| TP05 1404 | 32 | 1 | 4 | Gentle curve, legs for sliding into 9mm holder |
| TP05 1724 | 32 | 1 | 3 | Curved, 3 legs ** |
| TP05 1730 | 32 | 1 | 3 | Curved, clip legs ** |
| TP05 1748 | 33 | 1 | 3.5 | Double sided, co-extruded dual colour ** |
| TP05 1750 | 34 | 1 | 2.1 | Gentle curve with C clip ** |
| TP05 1535 | 36 | 2 | 4 | Curved with long kinked leg |
| TP05 1935 | 40 | 1 | 3 | Curved with leg and C clip |
| TP05 1959 | 42 | 1 | 3 | Curved with leg and C clip |
| TP05 1799 | 43 | 1 | 3.45 | Gentle curve, legs for sliding into 18mm holder ** |
| TP05 1783 | 44 | 1.5 | 2.5 | Gentle curve with C clip |
| TP05 1749 | 46 | 1 | 3.25 | Gentle curve with C clip |
| TP05 1637 | 50 | 1.5 | 2.5 | Gentle curve, long clip legs ** |
| TP05 1263 | 51 | – | – | Open, angled, C clip and clip ends |
| TP05 1672 | 60 | 1 | 4 | Sloping, barb and leg |
| TP05 1760 | 60 | 1.2 | 4.2 | Curved with 2 long legs ** |
| TP05 1763 | 68 | 1.2 | 4.5 | Curved with 2 legs |
| TP05 1613 | 73 | 2 | 5 | Gentle curve, 3 legs ** |
| TP05 1818 | 75 | 2 | 9 | Curved with complex legs |
| TP05 1526 | 92 | 1.5 | 7.5 | Curved with rounded ends and 3 legs ** |
| TP05 1764 | 146 | 2 | 3.5 | Domed reverse C with internal legs ** |
Click on a thumbnail image for a larger version of these plastic extrusions:

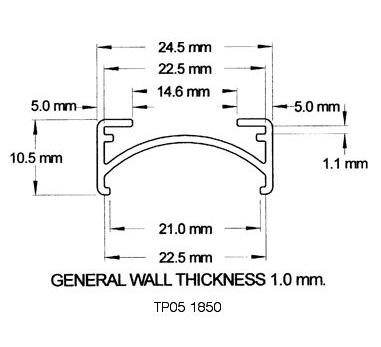

TP05 1850

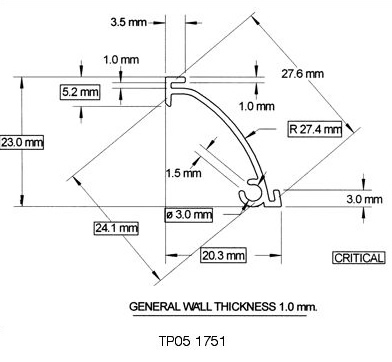

TP05 1751
TP05 1724
TP05 1730
TP05 1748

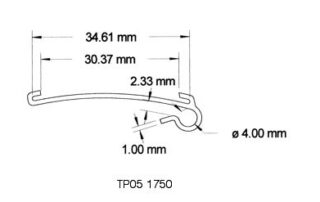

TP05 1750
Tp05 1760
TP05 1799
TP05 1637
TP05 1613
TP05 1526

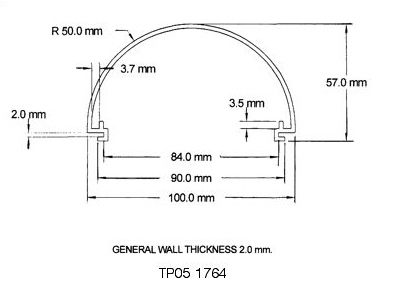

TP05 1764
