Curved EPOS Label Holders / Ticket Strips
Many Electronic Point of Sale (EPOS) Label Holders (plastic extrusions) have curved faces to improve the viewing perspective of the enclosed ticket or price label, whilst also allowing barcodes to be read and scanned.
This page details epos ticket strips (plastic extrusions) with curved faces, for different ticket widths and a variety of fixing legs and clips. These are to allow easy attachment to shelf edges and basket rims, or self adhesive/ magnetic strips that can be attached for adhesion to many surfaces. If adhesive strip is used, it can be with clear Polyester tape for cosmetic purposes.
The most common plastic material for epos strips is clear rigid PVC, which gives good clarity, is cost-effective and is suitable for significant re-use (it is usually used in supermarkets, for example). For greater clarity, where cosmetic appearance is more important, PETG is recommended, although this is generally more expensive to extrude than PVC. Please refer to our Materials Processed page for more details or contact us with Ticket Strip enquiries.
For flat epos label holders please click through, or return to our Label Holders landing page for details of open and 2 part ticket strips.
Please note that none of the sections listed below are held in stock – they are made to order, and subject to minimum order quantity. If you do not see the exact size or style you require we can design and manufacture tooling for you. Features of each profile have been summarised as far as is possible – samples are often available and drawings can be viewed (also below) for your assistance.
However if you cannot find what you are looking for we offer a Custom Plastic Extrusion Option and would welcome your enquiry.
Ref | Label (mm) | Wall (mm) | Description (** drawing below table) |
TP05 1862 | 20 | 1 | Curved with C clip and leg ** |
TP05 1845 | 22 | 1 | Gentle curve with leg ** |
TP05 1954 | 26 | 0.7 | Gentle curve with clip leg ** |
TP05 1848 | 28 | 1.2 | Gentle curve, no legs or clips |
TP05 1838 | 29 | 1.2 | Curved with 3 short legs ** |
TP05 1901 | 29 | 0.8 | Curved with C clip |
TP05 1971 | 30 | 1 | Curved with C clip ** |
TP05 2017 | 30 | 1 | Curved double clip with hinge and legs ** |
TP05 1600 | 32 | 0.5 | Gentle curve, no legs or clips |
TP05 1863 | 34 | 1 | Gentle curve with leg and C clip |
TP05 1858 | 37 | 1 | Gentle curve with leg and C clip ** |
TP05 1864 | 40 | 1 | Curved with leg and C clip |
TP05 1974 | 40 | 1 | Curved with leg and C clip ** |
TP05 1976 | 42 | 1 | Curved with long leg and C clip ** |
TP05 1815 | 55 | 1 | Gentle curve and 3 clip legs ** |
TP05 1571 | 74 | 1 | Epos with 8mm cavity and clip leg ** |

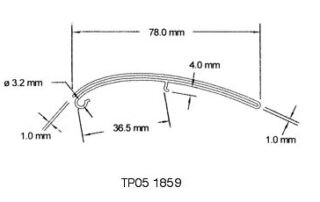

TP05 1859 | 75 | 1 | Curved with short leg and C clip ** |
Click on a thumbnail image for a larger version of these plastic extrusions:
