Poster Hangers – Snap Frames and Binder Bars
(Plastic Extrusions)
TP Extrusions have a variety of plastic extrusions available custom made or from stock, for poster hanging and similar display applications. There is a style of poster hanger for every situation – stick on, suspend, frame or just hand held. Please browse the details below and let us know how we can help with your Poster Hanger requirements.
1) Easysnap Snap Frame (Plastic Extrusion)
TP08 2107 Easysnap frame, showing self-adhesive tape on the back, in the closed position: | ![]() |
Easysnap is a lightweight plastic extrusion, versatile and easy to use front-loading snap frame suitable for Poster Hanging, Displays and making into 2 or 4 sided frames.
Supplied with or with out self-adhesive tape, Easysnap comes ready assembled and does not need tools to use. It is possible to supply this in a variety of colours, so making it a cheaper and more colourful alternative to traditional aluminium frames.
Easysnap can be made cut to any lengths, in any colour, in PVC. You can even have the two parts in different colours for a more eye catching display! Please note that this product is not currently a stock item.
How To Use Easysnap

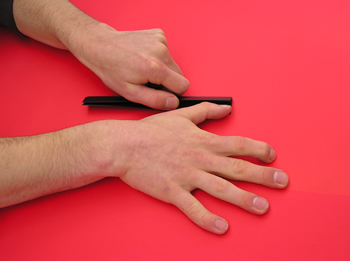

Open Easysnap frame

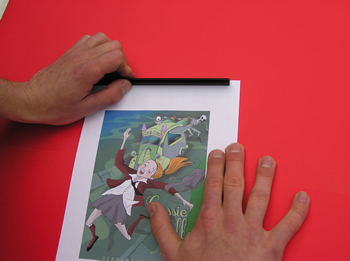

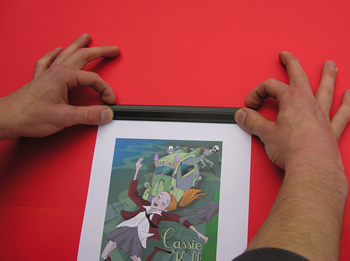

Slide poster, notice or picture right up into frame

Snap frame shut

Repeat for bottom frame

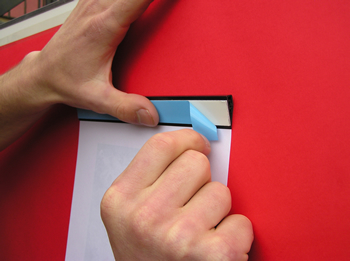

Peel backing from self adhesive tape on top frame

Offer Easysnap to the wall with care, to finalise best position

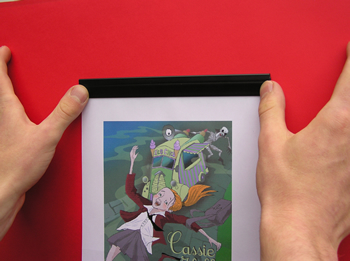

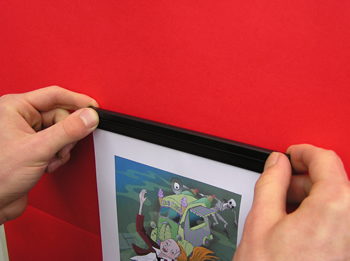

When correctly located, press firmly onto surface

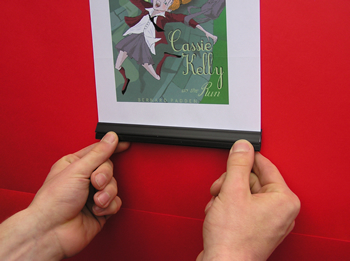

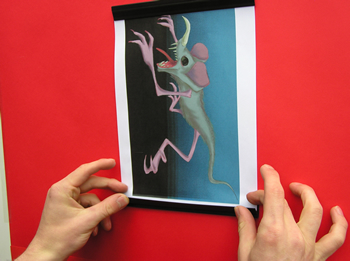

Repeat for bottom frame, pulling down slightly to make the insert taut

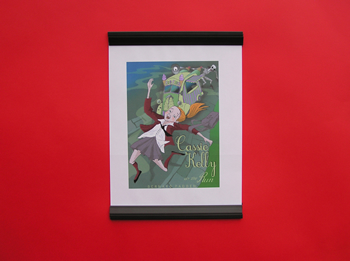

Admire the finished result!

Insert can be replaced by opening Easysnap frames and sliding in alternative from TP Extrusions
2) Easyhang Snap Frame (Plastic Extrusion)
TP08 2142 Easyhang frame in the closed position: | ![]() |
Easyhang is a plastic extrusion and is similar to Easysnap as it uses the same innovative snap and grip mechanism, but with an important extra feature: the rail at the top of the frame is designed for slide-in hangers, so that Easyhang can be suspended from ceilings and above aisles. Because it does not require tape it lends itself to use in clear PVC so that your poster, notice or display is the only thing to catch your customer’s attention! Why not use it for double sided displays?
Easyhang can be cut to your required lengths during production, and along with clear can of course be made in any other colour. Please note that this product is not currently a stock item.
How to use Easyhang

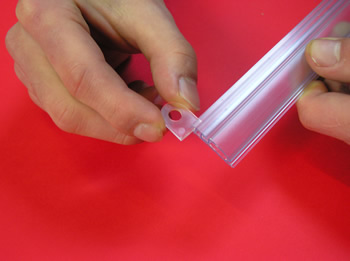

Insert slide-in hangers

Open Easyhang frame

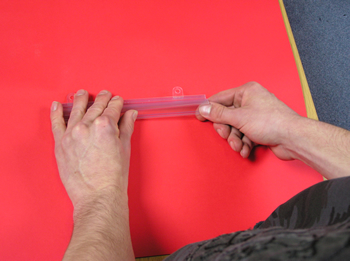

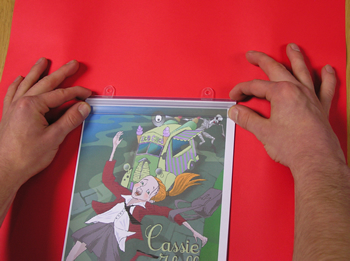

Slide insert right up into frame

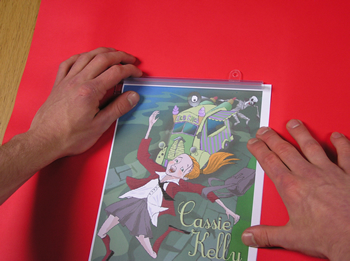

Snap Easyhang frame shut

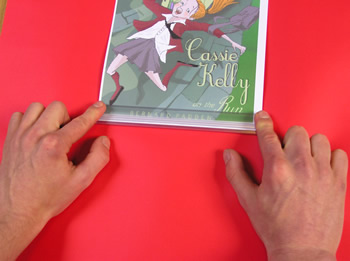

Repeat for bottom (weighting) frame

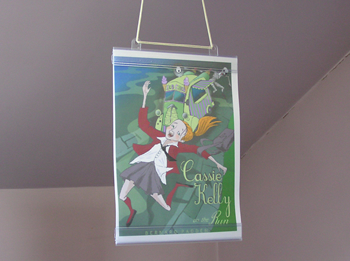

Attach cord or wire and suspend Easyhang frame
3) Binder Bars (Plastic Extrusions)
Binder Bar is a versatile and familiar plastic extrusion used in Poster Hanging, for edging, in stationary for binding information packs, and a variety of other straightforward requirements. Binding Bars come in two basic designs, either with a flat or rounded spine, both of which are detailed below.
However if you cannot find what you are looking for we offer a Custom Plastic Extrusion Option and would welcome your enquiry.

Flat Back Binder Bar
Stock Sizes Available | ||||
Dimensions in mm | ||||
Ref | A | B | C | Comments |
TP08 0058 | 4.5 | 13 | 1.2 | STOCK, rigid pvc, Black and White |
TP08 0067 | 6 | 13 | 1 | STOCK, rigid pvc, Black and White |
TP08 0078 | 10 | 13.5 | 1 | STOCK, rigid pvc, Black and White |
Other Tooling Sizes Available For Production Orders | ||||
Dimensions in mm | ||||
Ref | A | B | C | Comments |
TP08 W124* | 2.8 | 11 | 0.8 | rigid pvc |
TP08 W116 | 4.5 | 13 | – | rigid pvc |
TP08 B108 | 5 | 12 | 1.2 | rigid pvc |
TP08 B084 | 5 | 13 | 1.4 | rigid pvc |
TP08 B541 | 6 | 12 | 0.8 | rigid pvc |
TP08 B085 | 6 | 13 | 1 | rigid pvc |
TP08 B415 | 7 | 16.2 | 1.1 | rigid pvc |
TP02 B100 | 8 | 11 | 1 | rigid pvc, abs, polythene |
TP05 0978 | 8 | 14.5 | 1 | rigid pvc, abs, styrene |
TP02 B101 | 8 | 15.5 | 1 | rigid pvc, abs, polythene |
TP08 B340 | 8 | 16 | 0.9 | rigid pvc |
TP08 W105 | 9 | 12 | 1 | rigid pvc |
TP08 B532 | 11 | 15 | 1.1 | rigid pvc |
TP08 2060 | 11.5 | 16 | 1.2 | rigid pvc |
TP05 1946 | 17.5 | 16 | 1.2 | rigid pvc, abs, styrene |

Round Back Binder Bar
Stock Sizes Available | ||||
Dimensions in mm | ||||
Ref | A | B | C | Comments |
TP08 0068 | 4 | 14.3 | 1.2 | STOCK, rigid pvc, range of colours |
Other Tooling Sizes Available For Production Orders | ||||
Dimensions in mm | ||||
Ref | A | B | C | Comments |
TP02 C013 | 1.1 | 9/11 | 0.9 | rigid pvc, abs, polythene |
TP02 C012 | 1.4 | 4 | 0.8 | rigid pvc, abs, polythene |
TP02 C011 | 1.6 | 7.5 | 1 | rigid pvc, abs, polythene |
TP02 C014 | 2 | 8 | 1 | rigid pvc, abs, polythene |
TP02 C015 | 3 | 10 | 1.2 | rigid pvc, abs, polythene |
TP02 C016 | 3 | 14 | 1.5 | rigid pvc, abs, polythene |
TP05 1032 | 4 | 14 | 1 | rigid pvc, abs, styrene |
TP08 B086 | 4 | 14.3 | 1.2 | rigid pvc |
TP08 W222 | 5.1 | 14.7 | 1.4 | rigid pvc |
TP08 W298 | 7.9 | 14.7 | 1.4 | rigid pvc |
TP08 B549 | 8.5 | 24 | 1 | rigid pvc |
